Ashcroft 1009AW 1009SW 压力表

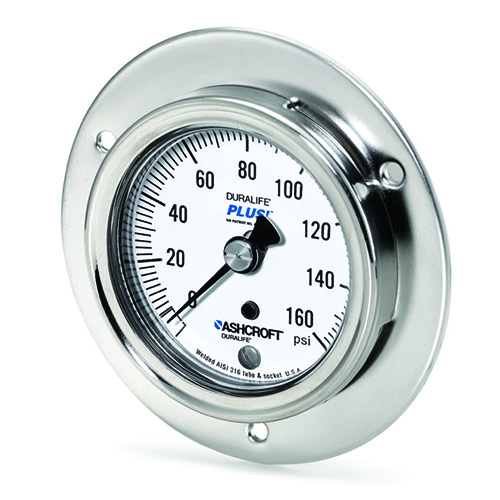

Ashcroft 1009AW 1009SW钢壳压力表 具有卓越的品质、耐用性和性能。可拆卸的卡口环让用户可以轻松进行微调。满足大多数应用和安装要求的好的选择之一。美国雅斯科1009钢壳压力表具有卓越的品质、耐用性和性能。可拆卸的卡口环让用户可以轻松进行微小的调整.... 停机不是一种选择。不可靠的仪器可能会耗费您的时间和金钱，并带来潜在的灾难性后果。美国雅斯科Ashcroft获得的认证与批准有：英国商会、CE认证、CRN、RoHS指令等等。 1009SW Duralife 2 12˝ dial ......
产品描述
Ashcroft 1009AW 1009SW钢壳压力表具有卓越的品质、耐用性和性能。可拆卸的卡口环让用户可以轻松进行微调。满足大多数应用和安装要求的好的选择之一。美国雅斯科1009钢壳压力表具有卓越的品质、耐用性和性能。可拆卸的卡口环让用户可以轻松进行微小的调整....
Ashcroft ®压力表提供各种尺寸、精度和范围从 0 – 10 in. H 2 O到0-100,000psi。选择包括差压表、测试表、卫生表、高纯度表、海底表、数字压力表、OEM 压力表等。Ashcroft 压力表以高质量和可靠性着称，几乎可以满足任何预算和应用要求。
量程
深圳银飞有售Ashcroft 1009AW 1009SW 压力表
停机不是一种选择。不可靠的仪器可能会耗费您的时间和金钱，并带来潜在的灾难性后果。美国雅斯科Ashcroft获得的认证与批准有：英国商会、CE认证、CRN、RoHS指令等等。
Ashcroft 1009AW 1009SW 压力表主要特征
• PowerFlex ™机芯提供卓越的抗冲击、振动和脉动能力；延长产品寿命并降低维护成本
• True Zero ™通过使用“零盒”代替传统的拨针（柱）来减少读数错误；这确保了产品安全、完整性和系统控制
• 真零通过使用“零™盒”而不是传统的拨号销来减少读取错误
• 可填充
Ashcroft 1009压力表应用在工业市场和医学和生命科学行业
工业市场：
泵和压缩机
锅炉
设备 橇装
专用 OEM 设备
氨和制冷服务
去离子水
液压和气动
恶劣环境条件
医学和生命科学：
高压灭菌器
规格
精度：±1.0% 量程（ASME B40.100 1A 级）；±1.5% 量程（充液）
尺寸：2½ ̋ (63mm), 3½ ̋ (100mm)
过程连接尺寸：1/4 NPT 外螺纹或1/8 NPT 外螺纹
过程连接位置可选择：下部、下背部、顶部、3 点钟、9 点钟
过程连接材料可选择：
AW：铝青铜
SW：316L 不锈钢
压力范围可选择：真空，复合，15,000psi
机芯：304 不锈钢，玻璃填充聚酯部分
天气防护：IP65（接头关闭时），IP54（接头通风） NEMA 4（接头关闭）
Window：聚碳酸酯
安装可选：冲洗、阀杆或表面
Dampening：液填充或 PLUS!™ 性能
表壳/表圈可选：304 不锈钢/可拆卸表圈
| ORDERING CODE: Example: | 251009 | SW | L | 02 | L |
| Dial Size/Model Code | |||||
| 25 - 251009 | 251009 | ||||
| 35 - 351009 | |||||
| System | |||||
|
AW - 316L SS tube/Aluminum, bronze connection (max. pressure 1,000psi) |
|||||
|
SW - 316L SS tube/316L SS process connection (max. pressure 15,000psi) |
SW | ||||
| Case Fill | |||||
| (blank) Dry gauge | |||||
| L - Liquid filled case (glycerin standard) | L | ||||
| Process Connection Size | |||||
| 02 - 1/4 NPT Male | 02 | ||||
| 04 - 1/2 NPT Male (SW models only) | |||||
| RW - SAE-4, 7⁄16˝ - 20 Straight thread | |||||
| EJ - 7⁄16˝ X 20 UNF-3A 37° flare | |||||
| KJ - 1/4˝ Straight JIS, BSP - 1009SW | |||||
| KA - 1/4˝ Tapered JIS, BSP - 1009SW | |||||
| 13 - G 1/4˝ DIN | |||||
|
JP - 1/4˝ Tubing, (SW models only) N/A with throttle plug, N/A ranges above 6,000psi |
|||||
|
JQ - 6mm Tubing, (SW models only) N/A with throttle plug , N/A ranges above 6,000psi |
|||||
| JL - 9⁄16˝ 18 UNF-2A, (SW models only) N/A on 25 1009 | |||||
|
JR - 3⁄8˝ Tubing, (SW models only) N/A with throttle plug, N/A on ranges above 6,000psi |
|||||
| Process Connection Location | |||||
| L - Lower | L | ||||
| B - Lower back | |||||
| D - Side (3 o’clock) | |||||
| E - Side (9 o’clock) | |||||
| T - Top | |||||
| STANDARD RANGES | |||||
| Vaccuum | psi | bar | kPa | MPa | kg/cm2 |
| 30IMV | N1BR | N100KP | N0.1MP | N1KG | |
| Compound | – | N1/0.6BR | N1/0.6BR | N0.1/0.6MP | N1/0.6KG |
| 30IMV&15# | – | – | – | – | |
| – | N1/1.5BR |
N100/150KP – |
N0.1/15MP | N1/1.5KG | |
| 30IMV&30# | – | – | – | ||
| – | N1/3BR | N100/300KP | N0.1/3MP | N1/3KG | |
| 30IMV&60# | – | – | – | – | |
| – | N1/5BR | N100/500KP | N0.1/5MP | N1/5KG | |
| 30IMV&100# | – | – | – | – | |
| 30IMV&150# | – | – | – | – | |
| 30IMV&300# | – | – | – | – | |
|
Positive Pressure |
– | N1/9BR | N100/900KP | N0.1/9MP | N1/9KG |
| 15# | 1BR | 100KP | .1MP | 1KSC | |
| 20# | – | – | – | – | |
| – | 1.6BR | 160KP | .16MP | 1.6KSC | |
| 30# | – | – | – | – | |
| – | 2.5BR | 250KP | .25MP | 2.5KSC | |
| 60# | 4BR | 400KP | .4MP | 4KSC | |
| – | 6BR | 600KP | .6MP | 6KSC | |
| 100# | – | – | – | – | |
| 120# | – | – | – | – | |
| – | 10BR | 1,000KP | 1MP | 10KSC | |
| 160# | – | – | – | – | |
| 200# | – | – | – | – | |
| – | 16BR | 1,600KP | 1.6MP | 16KSC | |
| 300# | – | – | – | – | |
| – | 25BR | 2,500KP | 2.5MP | 25KSC | |
| 400# | – | – | – | – | |
| 500# | – | – | – | – | |
| 600# | 40BR | 4,000KP | 4MP | 40KSC | |
| 800# | – | – | – | – | |
| – | 60BR | 6,000KP | 6MP | 60KSC | |
| 1,000# | – | – | – | – | |
| 1,500# | 100BR | 10,000KP | 10MP | 100KSC | |
| 2,000# | – | – | – | – | |
| – | 160BR | 16,000KP | 16MP | 160KSC | |
| 3,000# | – | – | – | – | |
| – | 250BR | 25,000KP | 25MP | 250KSC | |
| 4,000# | – | – | – | – | |
| 5,000# | – | – | – | – | |
| 6,000# | 400BR | 40,000KP | 40MP | 400KSC | |
| 8,000# | – | – | – | – | |
| – | 600BR | 60,000KP | 60MP | 600KSC | |
| 10,000# | – | – | – | – | |
| 15,000# | 1,000BR | 100,000KP | 100MP | 1,000KSC | |
