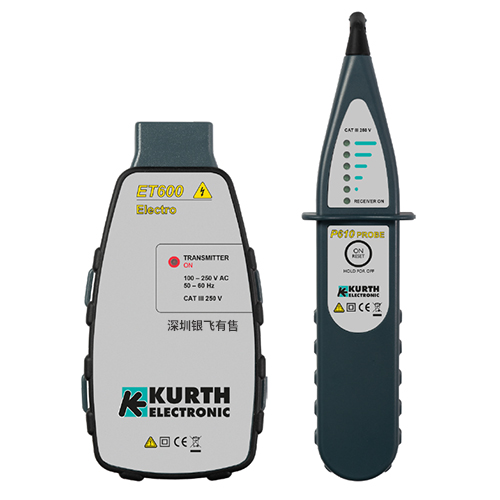

带电线路熔断器定位仪套装KE601 Electric。The line tracer set KE601 Electric, consisting of the transmitter EasyTest600 and the signal receiver Probe610, was developed for intuitive and quick work in active electrical installations.
A ferrite transducer test tip makes the signal receiver ideal for working in active electrical installations. The automatic adjustment of the signal sensitivity at the push of a button allows the user to achieve the desired search results after only a short use of the signal receiver. In addition to the acoustic signal evaluation, the 6-stage visual display of the signal strength on the Probe610 also helps the user during localisation.
For testing, the EasyTest600 transmitter is connected via a connection cable to the circuit to be tested, which simultaneously supplies the device.

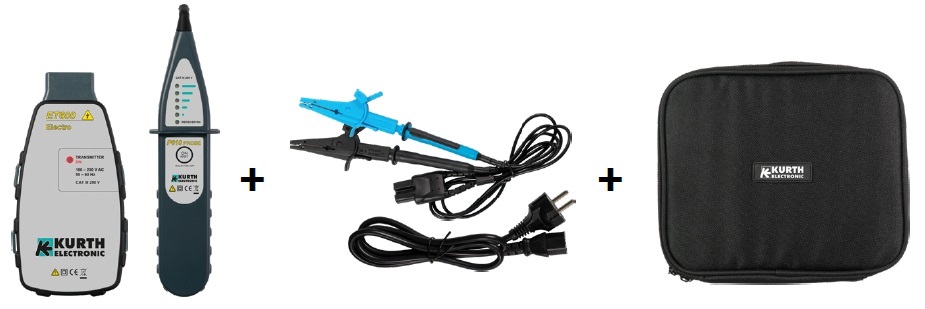

A mains cable and a test probe set with crocodile clips and safety plugs are available to the user as connection options. Localisation is possible up to a cable length of several hundred metres without affecting other devices.In addition to the test leads, the scope of delivery also includes a high-quality device bag.

KURTH熔断器定位仪套装

■ 带电线路定位熔断器/断路器的位置
■ 声音和视觉信号双重识别
■ 接收机灵敏度自动调节
■ 测试范围长达数百米
■ 可通过电源插座、鳄鱼夹或者安全插座多种方式连接
带有丰富配件的电力线路追踪器，安全等级 CAT III 250 伏, 用于定位带电配电网络中熔断器和断路器的位置。
线路追踪器KE601, 由发射机EasyTest600和信号接收机Probe610两部分组成，目的是为了在带电线路中快速直观的完成电气安装工作。由铁氧体材料制作的接收机测试探头非常适合电气安装的工作。而一键自动灵敏度调节可以帮助使用者更快速简便的找到期望的结果。另外，接收机上的声音信号和6阶的信号强度指示信号能帮助使用者更好的定位。
测试过程，EasyTest600发射机通过连接线缆与被测电路相连，同时被测电路给发射机供电。

一根电源线和由鳄鱼夹以及安全插头组成的测试探头套装给使用者提供多种连接选项。信号定位的长度可达数百米而不影响线路中其它的设备。另外，标配提供了一套高质量的便携包用于测试线缆的收纳。
